Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved

China Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved supplier
Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved supplier Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved supplier Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved supplier

Large Image :  Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved

Product Details:

Place of Origin: Guangdong
Brand Name: Northtime
Certification: CE ROHS IP65
Model Number: YG-S225

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1PCS/Ctn, 510*450*155 mm
Delivery Time: 5-7 days
Payment Terms: Western Union, L/C, T/T
Contact Now
Detailed Product Description
Warranty Time: 2 YEARS Samples Delivery: 3-5 Days
MOQ: 100pcs Lighting Mode: Lighting Control And Remote Control
Installation Height: 2~3M Lighting Time: More Than 12hours
Charge Time: 6-7 Hours LiFePo4 Battery: 3.2V/13000mAH

Remote Control 25W Outdoor Split Separated LED Solar Street Light with Ce RoHS Approved
Yigang is offing a reliable, convenient and economical way to light up Highways, Streets, office campus, Residential areas, parking zone, airports and any other public area, thus providing clear visibility for pedestrians and drivers without any requirement of AC grid access. SO lighten up your surroundings with green energy with minimal initial investment and maintenance.

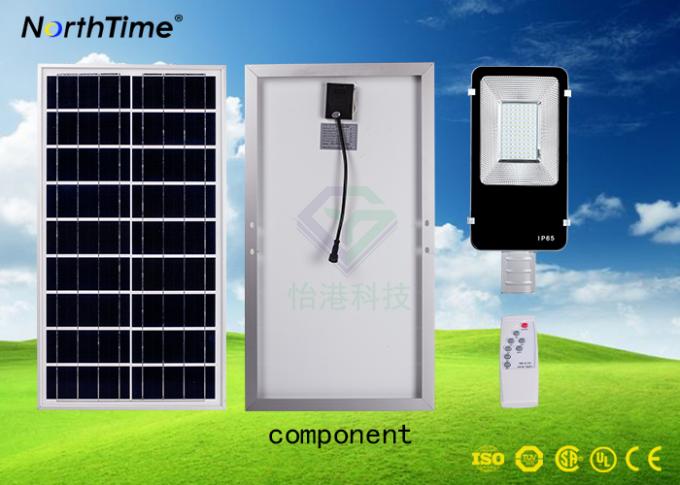

1.key component of solar energy LED street light
(1) LED street light; (2) LED controller(time controller+light controller); (3) Solar panel; (4) Battery
Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved
2. Functions of Various part
(1) Advantage of high power LED
l High efficiency
l Low electricity cost
l Energy efficiency
l High brightness
l No strobe frequency
l Long life
l High impact resistance, High Stability

(2) Solar panel
The solar panel is the hard core of the solar street light system, is also the value highest part. Its function is transforms sun's emissivity into the electrical energy,or escorts to the accumulator to save,or impetus load work.

(3). Solar controller
The function of the solar energy controller is to control the whole system's working condition,and has the overdischarge Protection function to the the accumulator. In the big temperature difference place, the qualified controller should also have the temperature compensation function. Other additional function like light-operated switch,time switch must be the option of the controller

(4) Battery
Generally it is the
LiFePo4 battery, Its function is store up the electrical energy which sent out from the solar cell when it has the illumination.
Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved
3. Operational principle of solar LED street light
Utilizing photovoltaic effect principle, maked the solar panel. Daytime, the solar panel receives the solar radiant energy and translate into the electrical energy output, pass charge controller, Stores up in the accumulator cell. Night when the illumination gradually reduces to about 10Lux, the solar panel open-circuit voltage is about 4.0V,charge controller sense the voltage, accumulator discharge to the lamp.

4. Specification
1.Material:Die-casting Aluminum
2.LED lamp : 25W 5730*40PCS
3.Solar panel power: 6V 10W
4.LiFePo4 battery: 3.2V/13000mAH
5.Installation height: 2~3M
6.Working Temperature: -20℃~+65℃
7.Lighting Time: more than 12hours
8.Charge Time: 6-7 Hours
9.Lighting Mode: lighting control + remote control
10.Lighting Time:Remote Control

Item NO.YG-S225
Light TypeSolar
Light SourceLED Lamp
20'GP Container710sets
40'GP Container1370sets
Solar Panel6V 10W
Battery TypeLiFePo4 battery 3.2V/13000mAH
Battery Lifetime2 years
IP RateIP65
Installation Height2-3 m
Sample SupplyAvailable
Sample Delivery Time3-5days
Body MaterialDie-casting Aluminum
Charge Time6-7 hours
Lighting Timemore than 12 hours
Packing Size510*450*155 mm
Working temperature-30ºC~+60ºC
Control Functionslighting control + remote control
ApplicationGardens, Streets, residential, industrial zone roads, square and park, school, campus, farm, villas, etc.


Energy Efficiency 25W Outdoor Solar LED Street Light With Ce RoHS Approved
