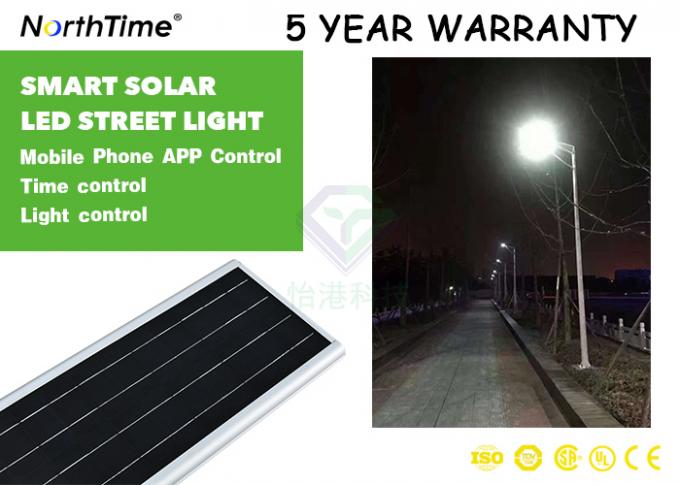

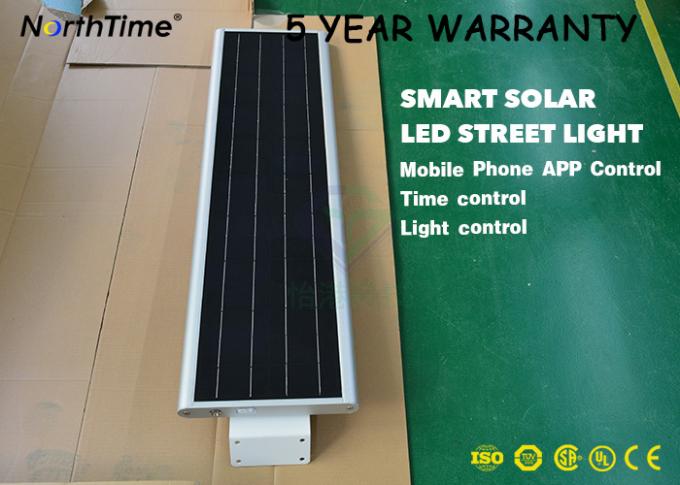

Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights

Good quality All In One Solar Street Light for sales
Good quality All In One Solar Street Light for sales
Yigang Team is the best, we will visit again.

—— Delak Ratibe

Lights are wonderful in SA, thank you.

—— Mr Romano

Fast delivery time , good after-sales service!

—— Khalid Bin Saeed

I'm Online Chat Now

Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights

China Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights supplier
Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights supplier Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights supplier Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights supplier

Large Image :  Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights

Product Details:

Place of Origin: Guangdong,China
Brand Name: NorthTime
Certification: CE/RoHS/IP65/ISO
Model Number: IN-240C

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: 1Set/Carton, Packing size: 1360*410*210mm
Delivery Time: 3-15 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 7000 Set /Month
Contact Now
Detailed Product Description
Solar Panel: High Efficiency Germany Solarworld 18V 65W LED Lumens: 4000~4300LM
Battery Type: Lithium Battery( 5 Years Lifespan) Certificate: CE/RoHS/IP65/ISO
Lighting Time: 4 Rainy Days Backup Charge Time: 6-7 Hrs
Sensor: Infrared Motion Sensor & Light Sensor& Time Sensor Working Temperature: -30℃~+60℃
LED Brand: USA Bridgelux Battery Capacity: 12V 30AH
LED Number: 42 Pieces Warranty: 5 Years
Led Lamp Max Power: 40W Mounting Height: 7-10m
Energy Saving: Up To 80% Controller Efficiency: 95%

12V 40W Germany Solarworld Solar Powered Parking Lot Lights Solar Panel Lights





Technical Specification:



Solar panel Max power 18V 65W
Brand Germany Solarworld
Lifespan 25 years
Battery Type Lithium LiFePO4 Battery
Power 12V 30AH
Lifespan 5 years
Led lamp( PIR sensor) Max power 40W
Led chip USA bridgelux
Lumen(lm) 4000~4300LM
Lifespan 50000 hours
Lamp body material Aluminum body
Charge time 6-7 hours by sun
Worktime 4 rainy days, 12 hrs per night
Certificate CE/RoHS/IP65/ISO

Protection

IP65
Angle adjustabler 120 degree
Warranty 5 years
Installation height 7-10m



Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights



Integrated Solar Street Lights
(All-in-One)

The SS2 Series is the second generation of integrated solar streetlights, with a better performance than the last generation:

· Improved from the deficiency of the last generation, which was first developed in 2013

· Innovative all-in-one structure– simple and easy installation, requiring no wiring

· Integrated extrusion aluminum body with anodic oxidation treatment and anti-rust corrosion

· Intelligent motion sensor and power management system to get the most from sunshine



Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights



1. Dusk to dawn control

The controller is always monitoring the voltage of the solar panel, which increases or decreases with the intensity of the sunlight. When it is lower than 5v, towards dusk, the control will switch on the LED lights. And when it is towards daybreak and the voltage is larger than 5v, the LED lights will be turned off.

2. Time control

The solar controller can also control the power output according to the time schedule, for instance, you want
· 70 percent brightness from 6:00 pm to 7:00 pm,
· 100 percent from 8:00pm to 10:00pm,
· 30 percent from 11:00 pm to 5:00 am.
Commonly, a controller has around 5 time-slots you can use to set according to different requirements of projects.
Time control is often used in conjunction with motion sensor control. For example, from 11:00 pm to 5:00 am, there are few people on the road, so you can set only 30% power during this period, meanwhile, only capitalizing on the motion sensor to raise power to 100% when a passer-by is detected.
By doing this, we can save a lot of energy to boost the duration of off-grid solar street lights and ramp up the days of autonomy.

3. Motion sensor control

A controller can take action when it receives a signal from the motion sensor to increase LED brightness when someone is in sensor area, and then revert to the former level of brightness when it moves out of the area.

Intelligent Integrated Solar Street Light , 40 W Germany Solarworld Solar Powered Parking Lot Lights

needless to say, the quality of products is very important to businesses, sometimes, is crucial for winning tenders.

But can you always get a qualified all in one solar street light? I doubt it.
You might encounter problems:
· even if you have been in this business for years, but you still have no idea about what exactly standards for an eligible product?
· you might have learned the standards, but how to achieve? What factors affect the quality?
Let’s dive in the content with these questions you may have.
For almost all kinds of integrated solar street lights, QC mainly focuses on the following items:
· CCT & CRI
· LM80 standard
· Battery cycle times
· 3 transportation testing for lithium batteries
· Ingress Protection standard
· Working temperature
