150 Watt Commercial Outdoor Led Pole Lights With Pole Security

Place of Origin CHINA
Brand Name Coursertech
Model Number JMGD-COM003
Minimum Order Quantity 100
Price 120USD
Packaging Details CARTON
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 20000sets/month
Product Details
Lamp Efficiency >92% CCT 3000-4500K
Material Iron And Aluminium Lumen 160lm/w
IP 65 PF 0.9
Voltage 100-240V Color Customization
Installing Size ∅61mm Warranty 5years
Brand Coursertech
High Light

150 watt led pole lights Coursertech

,

150 Watt led security pole light Coursertech

,

150 Watt commercial outdoor led post lights Coursertech

Leave a Message
Product Description

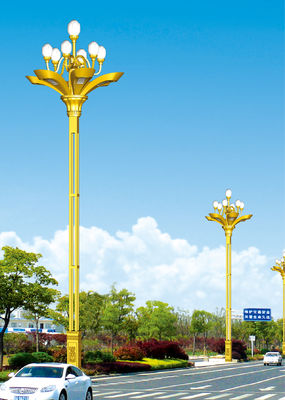

LED Combination lighting garden lighting flower light Aluminium 30-200W 160lm/w



1.Brand new innovation patent light design,the 11° deviation angle design for the portrait light curve,
which is the first one in the domestic,make more light towards to the middle of the road.
And the transversal light angle is 135°with the 0.65 regularity to avoid the dark area radically.
2.Innovated integration heat radiation light body,make utmost contact area to the air,
less joint seam between aluminum basilar plate and the heat radiation body,make the heat emanate quickly.
The structure temperature is around 45 ℃ which prolong the light working life,
3.Dimmable power driver is invented by Institute of electronic of Chinese Academy of Sciences,
which makes the light working life more than 5000hours.
4.High temperature safety illuminance protecting system:
In order to insure the LED street light working effciency and long life in the favourable working condition(within 65℃),
coursertech street lightswill switch into half power if the light exceed the standard temperature(65℃)



No Parameter
/Item No
JMLW150 JMLW250
1 Rated Power 80-150w 200-250w
2 LED Chip 5W/pc 5W/pc
3 LED Quantity 88 132
4 CCT 3500K-4500K 3500K-4500K
5 Voltage AC100-265V AC100-265V
6 Frequrncy Range 50-60Hz 50-60Hz
7 Power factor 0.975 0.975
8 Lumen 150lm/w 150lm/w
9 Total lumen 12000lm 30000lm
10 IP IP65 IP65
11 Working life >80000HRS >80000HRS
12 Environment Temperature -30℃to+65℃ -30℃to+65℃
13 Light Body material Aluminium Aluminium
14 Pole Height 10-12m 12m
15 Installing Size Φ61mm Φ61mm
16 Products Size 885*361*166mm 1053*379*174mm
17 Packing Size 900*380*190mm 1070*400*180mm
18 Net Weight 15KG 24KG
19 Gross Weight 16.5KG 26KG
