100 Watts 80 Watts All In One Energy storage integrated LED street light

Place of Origin CHINA
Brand Name Coursertech
Certification 202130742917.X
Model Number JMLW150
Minimum Order Quantity 100
Price 120USD
Packaging Details CARTON
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 20000 sets a month
Product Details
Material Custom / Iron And Aluminium Rated Power 80-150W
Lamp Efficiency >92% Color Temperature 3500-4500k
Installing Size Φ61mm Central Illumination 50lux(10m)
Lumen 150lm/w Voltage AC100-260V
IP Grade 65 Color Green,Golden And Black / Custom
Working Life 80000HRS
High Light

80 watts all in one led street light Coursertech

,

100 watts all in one led street light Coursertech

,

solar street light 100w Coursertech

Leave a Message
Product Description

Intelligent and energy storage integrated led street light lamp aluminium 5 years warranty


In fact, for streetlights, greater efficiency and longer life are essential to keeping costs down. Switching power supplies designed to power LED lights must also be efficient and durable to ensure that they have the same maintenance-free life as LED lights. Resonant converters are one of the most popular power topologies here, as their performance leads to higher power efficiency and reduced EMI compared to previous power topologies. Soft switch is an important characteristic of resonant converter. But the use of parasitic bodydiodes in resonant converters can sometimes cause system failures. The charge stored in the parasitic diode must be completely removed to avoid large current and voltage surges, including high dV /dt and di/dt in the topology. Therefore, the key parameters of power MOSFET, such as Qrr and reverse recovery DV/DT, will directly affect the dynamic performance of resonant converter.

Parameter JMLW150
额定功率Rated Power 80-150W
LED芯片 LED  Chip 5W/PC
LED数量 LED Quantity 88
色温 Color Temperature 3500-4500K
输入电压 Input Voltage AC100-260V
电源频率 Frequency Range 50-60Hz
功率因素 Power Factor 0.975
灯具效能 Luminous Efficiency 150lm/w
灯具总光通量 Lamp's Efficiency 1200lm
防护等级 IP Grade ip65
使用寿命 Working Life >80000HRS
工作温度 Environment Temperature -30°C ~ + 65°C
材料 Light Body Material 压铸铝 Die cast aluminum
杆高 Pole Height 10-12m
中心照度 Central lllumination 50lux(10m)
杆距 Pole Distance 40m
安装管直径 Installing Size 61mm

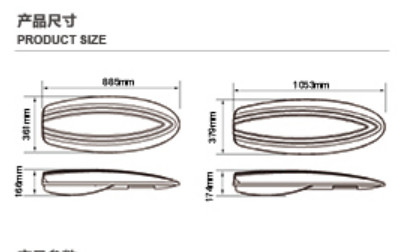

产品尺寸  Products Size 885*361*166mm
包装尺寸 Packaging Size 900*380*190mm
净重 Net Weight 15kg
毛重 Gross Weight 16.5kg
