PF0.9 Aluminium Parking Lot magnolia shape LED Street Light with high pole 200W 160lm/W 100-265V

Place of Origin CHINA
Brand Name Coursertech
Model Number JMGD-COM005
Minimum Order Quantity 100
Price 120USD
Packaging Details CARTON
Delivery Time 30 work days
Payment Terms T/T, D/P, L/C
Supply Ability 20000sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material DUE TO ORDER Lamp Efficiency >92%
CCT 3000-4500K IP 65
PF 0.9 Lumen 160lm/w
Voltage 100-240V Color DUE TO ORDER
Warranty 5years Installing Size ∅61mm
High Light

Parking Lot LED Pole Street Lights 200W Coursertech


LED Pole Street Lights 200W Coursertech


Coursertech LED Pole Street Lights 200W

Leave a Message
Product Description

LED Combination street light 200W 160lm/w 100-265V PF0.9 Aluminium

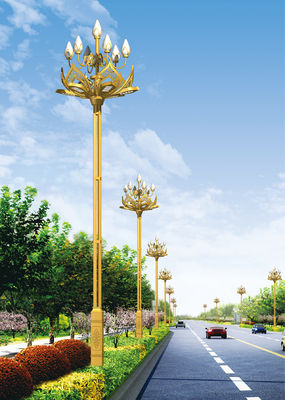

PF0.9 Aluminium Parking Lot  magnolia shape LED Street Light with high pole 200W 160lm/W 100-265V 0

The brand-new and innovative patented lighting design, the first domestic portrait light curve 11 °deflection design, makes the street lamp brighter, and the lateral light angle is 135 °, 0.65, which fundamentally avoids the dark area.
Innovative integrated heat dissipation lamp body, maximum contact area with air, few seams between aluminum substrate and heat radiator, fast heat dissipation, structure temperature about 45 ℃, prolong lamp service life.
The dimmable power driver was invented by the Institute of Electronics of the Chinese Academy of Sciences, which makes the working life of the lamp more than 5000 hours.
High temperature safety illuminance protection system: in order to ensure the working efficiency and long life of LED street lamps under good working conditions (within 65 ℃), coursertech street lamps will switch to half power if they exceed the standard temperature (65 ℃).
Adjustable light delay power off system: delay for LED automatic control of Coursertech street lamp.
This means that after 6 hours (which can be adjusted according to actual needs), the lamp will automatically switch to half power, saving power while maintaining basic brightness.
6.LED chip uses German Osram, American Bridgelux, Cree, reliable quality!
Coursertech can customize all kinds of high pole street lights, solar led street lights, courtyard decoration lights, all kinds of street lights, street lights and so on.

No Parameter
/Item No
1 Rated Power 80-150w 200-250w
2 LED Chip 5W/pc 5W/pc
3 LED Quantity 88 132
4 CCT 3500K-4500K 3500K-4500K
5 Voltage AC100-265V AC100-265V
6 Frequrncy Range 50-60Hz 50-60Hz
7 Power factor 0.975 0.975
8 Lumen 150lm/w 150lm/w
9 Total lumen 12000lm 30000lm
10 IP IP65 IP65
11 Working life >80000HRS >80000HRS
12 Environment Temperature -30℃to+65℃ -30℃to+65℃
13 Light Body material Aluminium Aluminium
14 Pole Height 10-12m 12m
15 Installing Size Φ61mm Φ61mm
16 Products Size 885*361*166mm 1053*379*174mm
17 Packing Size 900*380*190mm 1070*400*180mm
18 Net Weight 15KG 24KG
19 Gross Weight 16.5KG 26KG

PF0.9 Aluminium Parking Lot  magnolia shape LED Street Light with high pole 200W 160lm/W 100-265V 1
