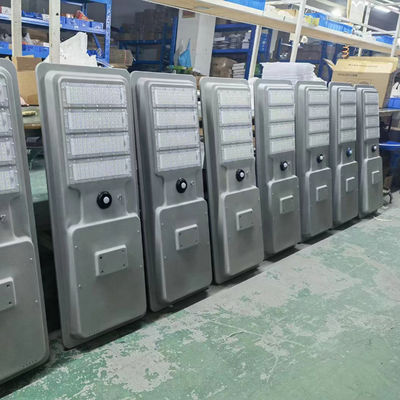

30w 100w All In One Solar Street Light 100-265V PF0.9 integrated solar street light

Place of Origin CHINA
Brand Name Coursertech
Certification 202130742917.X
Model Number JMGD-I007
Minimum Order Quantity 100
Price 120USD
Packaging Details CARTON
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 20000 sets a month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Integrated Led Street Light Material Iron And Aluminium
Frequency Range 50-60Hz Lamp Efficiency >92%
Color White,Yellow,Red,Blue,Green,Golden And Black Installing Size Φ61mm
Central Illumination 47lux(10m) Lumen 150lm/w
Voltage 100-265V IP 65
PF 0.9 Working Life 80000HRS
Power 150W Service Customization
High Light

30w all in one solar street light


100w solar panel street light


all in one solar street light 100-265V

Leave a Message
Product Description

led all in one solar street light parameters

30w 100w All In One Solar Street Light 100-265V PF0.9 integrated solar street light 030w 100w All In One Solar Street Light 100-265V PF0.9 integrated solar street light 130w 100w All In One Solar Street Light 100-265V PF0.9 integrated solar street light 2

Integrated solar LED street light, also known as solar LED integrated light, is a combination of high-efficiency solar panels, 6-8 years long-life lithium batteries, high-luminous-efficiency LEDs and intelligent controllers, anti-theft installation brackets. Also called all in one solar LED street light or integrated solar LED garden light. The integrated solar street lamp is converted into electricity by solar panels and then recharges the lithium batteries in the integrated solar street lamp. During the day, even on cloudy days, the solar generator (solar panel) collects the energy needed for storage and automatically supplies LED lights at night, enabling night lighting.

Parameter BCT-OLF-80W BCT-OLF-100W
Solar panel (single crystal) 80W 100W
Lithium iron phosphate battery (built-in) 3.2V/100(±5)Ah 3.2V/100(±5)Ah
Main light source (main light source) 6000lm 7000lm
Light source (secondary light source)   1000lm
Lighting time
Installation height 8-10m 8-10m
Installation distance 35-45m 35-45m
CCT 3000-6500K 3000-6500K
Pole diameter 60-65mm 60-65mm
Solar panel charging time(Under strong sunlight) 8hours 8hours
Solar panel charging time(rain) 3-5days 3-5days
Day working time ≥12hours ≥12hours
Storage temperature 0-55℃ 0-55℃
Working temperature ≤90RH% ≤90RH%
Waterproof grade IP65 IP65
Product size 1047*390*273mm 1417*390*273mm


1.Solar Panel:mono or poly-crystalline,20years life.
2.Battery:maintenance-free lead-acid or gel battery,over charge and over discharge protection,7-8years life.
3.Controller:MPPT charging mode,switch mode,switch on/off by light and time,5years life.
4.LED lamp:imported LED chip,high efficiency,more than 80000hours life.
5.Pole:zinc-plated steel pole and painting color of your choice,with the whole kit of stainless steel fasteners,20 years life.
6.Working Hours:10-12hours/night,normal lighting 360days/year.
7.Environmental Temperature:-30℃~+60℃
8.Wind Resistance:more than 150km/h
9.Dustproof andwaterproof.
(Custom-made specific requirements!)
