100w Patented Design Integrated Solar Street Light 3000 - 6500k
Product Details
| Solar Panel (single Crystal) | 100W | Lithium Iron Phosphate Battery (built-in) | 3.2/200(±5)Ah |
|---|---|---|---|
| Light Source | 7000lm(Equivalent To LED 70W Light Source) | Lighting Time(everyday) | ≥12 Hours |
| Mounting Height | 8-10m | Mounting Distance | 35-50m |
| Color Temperature | 3000-6500k | Light Pole Diameter | 60-65mm |
| Charging Time (in Strong Sunlight) | 8 Hours | Storage Temperature | 0-55°C |
| Operating Temperature | ≤90RH% | Waterproofing Grade | IP65 |

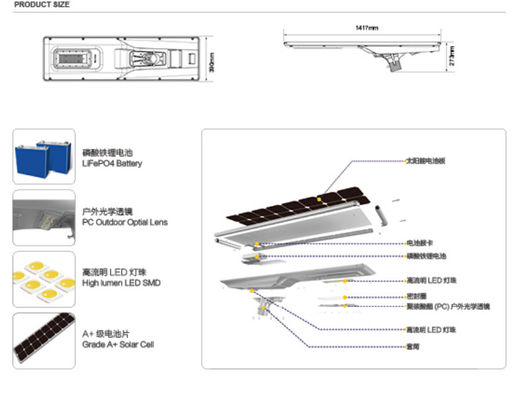

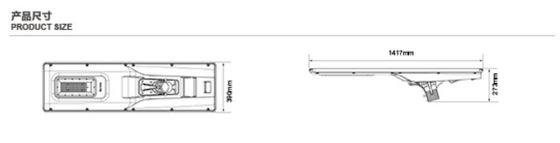

| Product Dimensions | 1417*390*273mm | ||
| High Light | 100w Integrated Solar Street Light,3000k Integrated Solar Street Light,Coursertech Integrated Solar Street Light |
||
Product Description
100w Patented Design Chinese Brand Factory Integrated Solar Street Light
LED all in one solar street light 60-200w energy saving 92% outdoor lighting Lithium iron phosphate batterybattery
1. Solar Panel:mono or poly-crystalline,20years life.
2. Battery:maintenance-free lead-acid or gel battery,over charge and over discharge protection,7-8years life.
3. Controller:MPPT charging mode,switch mode,switch on/off by light and time,5years life.
4. LED lamp:imported LED chip,high efficiency,more than 80000hours life.
5. Pole:zinc-plated steel pole and painting color of your choice,with the whole kit of stainless steel fasteners,20 years life.
6. Working Hours:10-12hours/night,normal lighting 360days/year.
7. Environmental Temperature:-30℃~+60℃
8. Wind Resistance:more than 150km/h
9. Dustproof andwaterproof.
10. Height:6m-12m.
(Custom-made specific requirements!)
| MODEL:BCT-OLF-80W | MODEL:BCT-OLF-100W | |
| Parameters: | SMALL FLAT PANEL | LARGE FLAT PANEL |
| Solar panel (single crystal) | 80W | 100W |
| Lithium iron phosphate battery (built-in) | 3.2/100(±5)Ah | 3.2/200(±5)Ah |
| light source | 6000lm(Equivalent to LED 60W light source) | 7000lm(Equivalent to LED 70W light source) |
| Lighting Time(everyday) | ≥12 hours | ≥12 hours |
| Mounting height | 8-10m | 8-10m |
| Mounting distance | 35-45m | 35-50m |
| Color temperature | 3000-6500k | 3000-6500k |
| Light pole diameter | 60-65mm | 60-65mm |
| Charging time (in strong sunlight) | 8 hours | 8 hours |
| Charging time (raining day) | ||
| Storage temperature | 0-55°C | 0-55°C |
| Operating temperature | ≤90RH% | ≤90RH% |
| Waterproofing grade | IP65 | IP65 |
| Product dimensions | 1047*390*273mm | 1417*390*273mm |
