Two main styles 150 Watts 80 Watt Die Cast Aluminum LED light Street Light
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Custom / Iron And Aluminium | Rated Power | 80-150W |
|---|---|---|---|
| Lamp Efficiency | ＞92% | Color Temperature | 3500-4500k |
| Installing Size | Φ61mm | Central Illumination | 50lux(10m) |
| Lumen | 150lm/w | Voltage | AC100-260V |
| IP Grade | 65 | Color | Green,Golden And Black / Custom |
| Working Life | 80000HRS | ||
| Highlight | Die Cast Aluminum LED Street Light,150W Aluminum LED Street Light,80W Aluminum LED Street Light |
||
Product Description

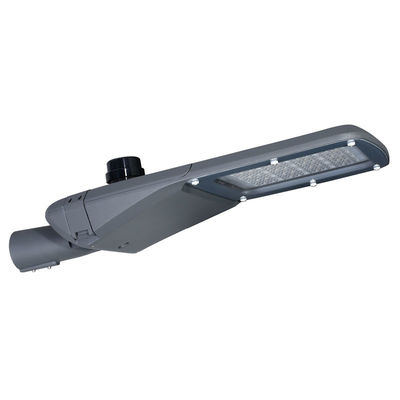

150 Watts 80 Watts Special Design Die Cast Aluminum LED Street Light
Die Cast Aluminum led street light lamp 5 years warranty
1: The newly invented light distribution design, the first domestic vertical light distribution curve with 11° eccentric angle design, makes more light cast to the middle of the road, and the light energy is fully utilized. The lateral beam angle reaches 160°. The uniformity of illumination can reach more than 0.65, completely eliminating the dark area.
2. Innovative integrated heat dissipation lamp body, the contact area between the lamp body and the air is as large as possible, and the aluminum substrate and the heat dissipation body are almost seamlessly connected, which can quickly dissipate heat and achieve rapid heat dissipation. The temperature of the structure is controlled at about 45° to maximize the service life of the lamps.
3. The energy-saving LED drive power is regulated in the AC period, and the DC light-controlled time-controlled MPPT solar controller is used. The service life of the LED lamps is 50,000-80,000 hours.
| Parameter | JMLW150 |
| 额定功率Rated Power | 80-150W |
| LED芯片 LED Chip | 5W/PC |
| LED数量 LED Quantity | 88 |
| 色温 Color Temperature | 3500-4500K |
| 输入电压 Input Voltage | AC100-260V |
| 电源频率 Frequency Range | 50-60Hz |
| 功率因素 Power Factor | 0.975 |
| 灯具效能 Luminous Efficiency | 150lm/w |
| 灯具总光通量 Lamp's Efficiency | 1200lm |
| 防护等级 IP Grade | ip65 |
| 使用寿命 Working Life | ＞80000HRS |
| 工作温度 Environment Temperature | －30°C ~ + 65°C |
| 材料 Light Body Material | 压铸铝 Die cast aluminum |
| 杆高 Pole Height | 10-12m |
| 中心照度 Central lllumination | 50lux(10m) |
| 杆距 Pole Distance | 40m |
| 安装管直径 Installing Size | 61mm |
| 产品尺寸 Products Size | 885*361*166mm |
| 包装尺寸 Packaging Size | 900*380*190mm |
| 净重 Net Weight | 15kg |
| 毛重 Gross Weight | 16.5kg |
