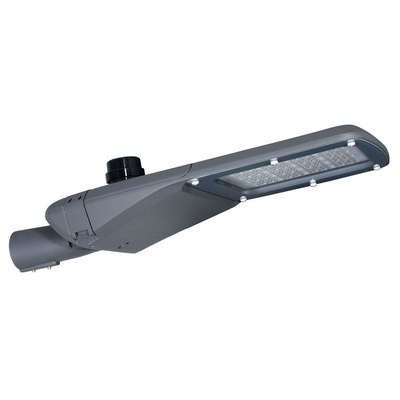

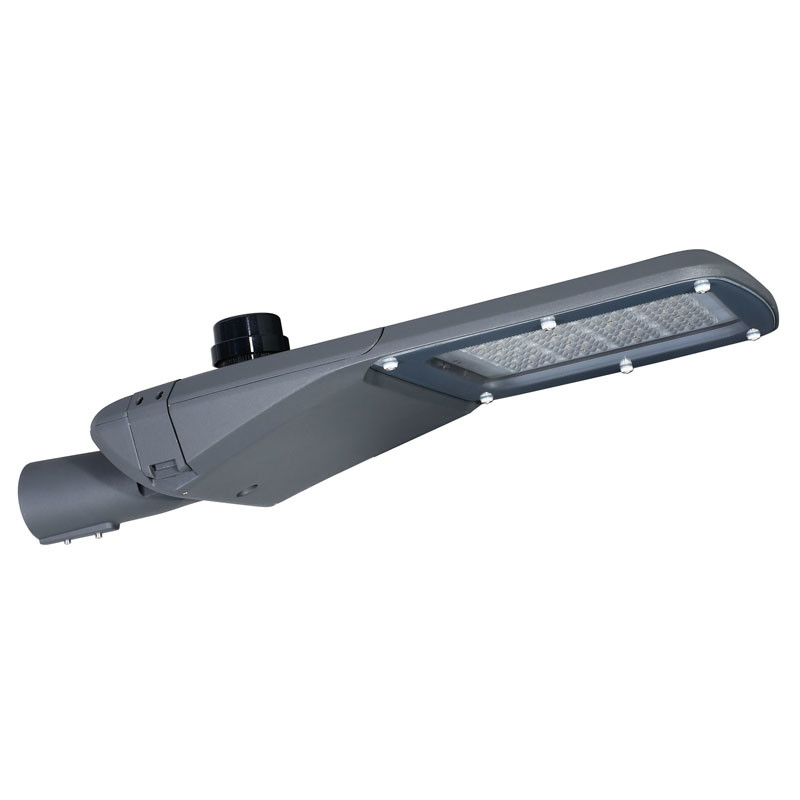

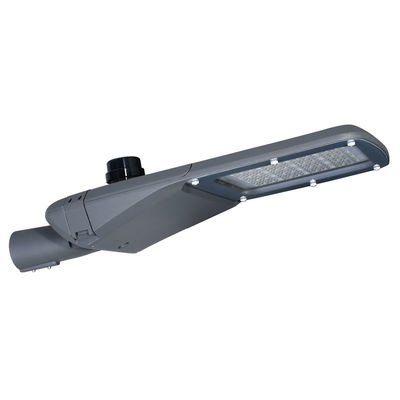

60W 90W 120 Watt 150W Automatic Led Street Light Waterproof Outdoor

Place of Origin CHINA
Brand Name Coursertech
Model Number JMJX-200
Minimum Order Quantity 500
Price 120USD
Packaging Details CARTON
Delivery Time 25-30 working days
Payment Terms T/T
Supply Ability 20000 sets /month
Product Details
Material Iron And Aluminium Lamp Efficiency >92%
CCT 3000-6500K Installing Size Φ61mm / Customization
Central Illumination 40lux(6m) Frequency Range 50-60Hz
Lumen 140lm/w Voltage 100-265V
PF 0.9 IP 65
Color White,Red / Customization Life Time 80000HRS
High Light

120 watt led street light


90w led street light


led solar street lamp 150w

Leave a Message
Product Description

Led street light Strong resistance to impact and lightning saving energy

Parameter Informations JMJX-30 JMJX-60 JMJX-90 JMJX-120 JMJX-150
Rated Power 30W 60W 90W 120W 150W
LED Chip 3W/pc 3W/pc 3W/pc 3W/pc 3W/pc
LED Quantity 24 48 72 96 120
Color Temperature 4500-5500K 4500-5500K 4500-5500K 4500-5500K 4500-5500K
Input Voltage AC100-260V AC100-260V AC100-260V AC100-260V AC100-260V
Frequency Range 50-60Hz 50-60Hz 50-60Hz 50-60Hz 50-60Hz
Power Factor >0.97 >0.97 >0.97 >0.97 >0.97
LED Luminous Efficiency 140lm/w 140lm/w 140lm/w 140lm/w 140lm/w
Lamp's Efficiency
>92% >92% >92% >92% >92%
IP Grade IP65 IP65 IP65 IP65 IP65
Working life >80000HRS >80000HRS >80000HRS >80000HRS >80000HRS
Environment Temperature -30℃to+65℃ -30℃to+65℃ -30℃to+65℃ -30℃to+65℃ -30℃to+65℃
Light Body material Aluminium Aluminium Aluminium Aluminium Aluminium
Pole Height 6m 7m 9m 10m 12m
Central Illumination 40lux(6m) 55lux(7m) 48lux(9m) 47lux(10m) 40lux(12m)
Pole Distance 25M 35M 40M 45M 50M
Installing Size Φ61mm Φ61mm Φ61mm Φ61mm Φ61mm
Products Size 520*380*120mm 600*380*120mm 720*380*120mm 840*380*120mm 960*380*120mm
Packing Size 580*445*185mm 660*445*185mm 780*445*185mm 900*445*185mm 1020*445*185mm
Net Weight 8KG 10KG 12KG 14KG 16KG
Gross Weight 10KG 12KG 14KG 16KG 18KG

Road lighting is an important part of urban lighting, the traditional street lights are often used, high pressure sodium lamp 360 degrees of light, the disadvantage of large light loss caused by a huge waste of energy.At present, the global environment is deteriorating, and all countries are developing clean energy.With the rapid growth of the national economy, the contradiction between energy supply and demand in China is becoming increasingly prominent, and the power supply begins to have a serious shortage situation, and energy saving is an urgent problem to be solved.Therefore, the development of new high efficiency, energy saving, long life, high color display index, environmental protection of LED street lamp is of great significance for urban lighting energy saving.Road lighting is closely related to people's production and life, with the acceleration of urbanization in China, LED street light, low power consumption, good driving characteristics, fast response speed, high seismic ability, long service life, green environmental protection advantages gradually into people's vision, become the world's most alternative traditional light source advantage of a new generation of energy-saving light source, therefore, LED street light will become the best choice of road lighting energy saving transformation.

LED street light is different from conventional street light, LED light source adopts low-voltage DC power supply, high efficiency white light synthesized by gan-based power blue LED and yellow, with high efficiency, safety, energy saving, environmental protection, long life, fast response speed, high color rendering index unique advantages, can be widely used in road. The outer cover can be manufactured with high temperature resistance up to 135 degrees and low temperature resistance up to -45 degrees.
