200W 240W 150w Led Street Light Parking Lot 4000K 18000lm IP65 90-265V Rs2926
Product Details
| Material | Iron And Aluminium / Customizable | Lamp Efficiency | ＞92% |
|---|---|---|---|
| CCT | 3000-6500K | Installing Size | Φ61mm |
| Central Illumination | 40lux(10m) | Frequency Range | 50-60Hz |
| Lumen | 150lm/w | Voltage | 100-265V |
| PF | 0.9 | IP | 65 |
| Color | Blue, Green, Golden And Customizable | Life Time | 80000HRS |
| Pole Height | 10m / Customizable | Power | 180w / Customizable |
| High Light | 200w led parking lot light Coursertech,240w led street light Coursertech,150w Led Street Light Parking Lot 4000K |
||
Product Description

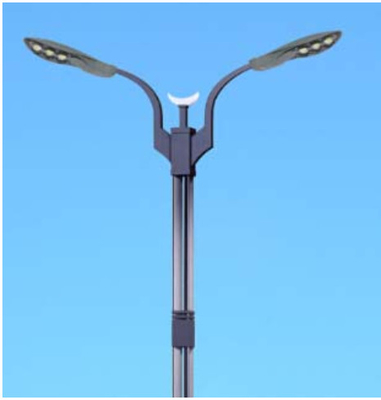

Led Street Light Lighting Lamp Color Temperature Optional High Color Rendering Index
| 1 | Rated Power | 80-150w | 200-250w |
| 2 | LED Chip | 5W/pc | 5W/pc |
| 3 | LED Quantity | 88 | 132 |
| 4 | CCT | 3500K-4500K | 3500K-4500K |
| 5 | Voltage | AC100-265V | AC100-265V |
| 6 | Frequrncy Range | 50-60Hz | 50-60Hz |
| 7 | Power factor | 0.975 | 0.975 |
| 8 | Lumen | 150lm/w | 150lm/w |
| 9 | Total lumen | 12000lm | 30000lm |
| 10 | IP | IP65 | IP65 |
| 11 | Working life | >80000HRS | >80000HRS |
| 12 | Environment Temperature | -30℃to+65℃ | -30℃to+65℃ |
| 13 | Light Body material | Aluminium | Aluminium |
| 14 | Pole Height | 10-12m | 12m |
| 15 | Installing Size | Φ61mm | Φ61mm |
| 16 | Products Size | 885*361*166mm | 1053*379*174mm |
| 17 | Packing Size | 900*380*190mm | 1070*400*180mm |
| 18 | Net Weight | 15KG | 24KG |
| 19 | Gross Weight | 16.5KG | 26KG |
1.Brand new innovation patent light design,the 11° deviation angle design for the portrait light curve,
which is the first one in the domestic,make more light towards to the middle of the road.
And the transversal light angle is 135°with the 0.65 regularity to avoid the dark area radically.
2.Innovated integration heat radiation light body,make utmost contact area to the air,
less joint seam between aluminum basilar plate and the heat radiation body,make the heat emanate quickly.
The structure temperature is around 45 ℃ which prolong the light working life,
3.Dimmable power driver is invented by Institute of electronic of Chinese Academy of Sciences,
which makes the light working life more than 5000hours.
4.High temperature safety illuminance protecting system:
In order to insure the LED street light working effciency and long life in the favourable working condition(within 65℃),
coursertech street lightswill switch into half power if the light exceed the standard temperature(65℃)
5.Dimmable time-delay power interruption system:the time-delay is used for the LED automatic control for Coursertech street lights,
which means after 6 hours(it can be adjusted according to the actual requirement),the light will switch into half power automatically,
to save the power while keep the basic brightness.
6.LED chip adopted is Germany Osram,American Bridgelux and Cree,reliable quality!
Zhejiang Coursertech Optoelectronics Co.,Ltd.,established in 1987,is a stock enterprise that professionally manufactures
illumination lights.The lights with "COURSER"brand have already enjoyed a certain reputation in both domestic and
international market.Coursertech has passed ISO 9001:2008,SGS,CCC,RoHS certificates etc.,meanwhile got 55 national
patents.
