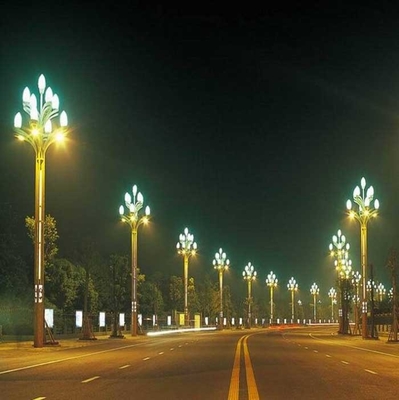

Municipal Waterproof LED Street Light High Power Ip67 Led Street Light Garden 250 Watt 80w
Product Details
| Material | Iron And Aluminium | Lamp Efficiency | ＞92% |
|---|---|---|---|
| CCT | 3000-6500K | Installing Size | Φ61mm |
| Central Illumination | 40lux(10m) | Frequency Range | 50-60Hz |
| Lumen | 140lm/w | Voltage | 100-265V |
| PF | 0.9 | IP | 65 |
| Color | White,Red,Blue,Green,Golden And Black | Life Time | 80000HRS |
| Pole Height | 10m | Power | 60W |
| High Light | high power street light,led street light 80w Coursertech,municipal street lights |
||
Product Description
Led street light Standard lamp holder high Luminous apparent efficiency rate
Led lamp advantage
1: the lamp body is very small led is very small, very fine chip encapsulation in the transparent epoxy resin, so it is very small, very lightweight, in the production and application can save a lot of materials and space.
2. The advantages of LED lamp two: very low energy consumption LED operating voltage is generally only 2~3.6V, working current as long as 0.02~0.03A. That means it consumes no more than 0.1 watts of electricity, more than 90 percent less than an incandescent bulb with the same light efficiency, and more than 70 percent less than CFLS.
| 1 | Rated Power | 80-150w | 200-250w |
| 2 | LED Chip | 5W/pc | 5W/pc |
| 3 | LED Quantity | 88 | 132 |
| 4 | CCT | 3500K-4500K | 3500K-4500K |
| 5 | Voltage | AC100-265V | AC100-265V |
| 6 | Frequrncy Range | 50-60Hz | 50-60Hz |
| 7 | Power factor | 0.975 | 0.975 |
| 8 | Lumen | 150lm/w | 150lm/w |
| 9 | Total lumen | 12000lm | 30000lm |
| 10 | IP | IP65 | IP65 |
| 11 | Working life | >80000HRS | >80000HRS |
| 12 | Environment Temperature | -30℃to+65℃ | -30℃to+65℃ |
| 13 | Light Body material | Aluminium | Aluminium |
| 14 | Pole Height | 10-12m | 12m |
| 15 | Installing Size | Φ61mm | Φ61mm |
| 16 | Products Size | 885*361*166mm | 1053*379*174mm |
| 17 | Packing Size | 900*380*190mm | 1070*400*180mm |
| 18 | Net Weight | 15KG | 24KG |
| 19 | Gross Weight | 16.5KG | 26KG |
Relying on the conception of "be Vigilant in Peace Time,Science and Technology Innovation",our company cooperates
with Beijing Kedian Microwave Electronic Co.,Ltd.,which belongs to the Institute of Electronic of Chinese Academy of
Sciences,we together built Zhejiang Coursertech Optoelectronics Co.,Ltd.Depending on the technical strength of Chinese
Academy of Sciences,with advanced production equipments and high-quality imported electrical components,we
successfully develop and manufacture two series products:
